With angles of 60º, 70º, 80º, and 90º to measure flat V-groove welds
Design: steel, stainless, chrome-plated
Measurement range
mm
20
Net weight
kg
0.065
Order number
95101
Welding-Seam Gauge No. 9a
Fan-shaped with 12 blades
For measuring welding seams on right-angled welded corners
Design: steel, bright
Measurement range
mm
3-12
Net weight
kg
0.078
Order number
92101
Welding-Seam Gauge No. 9b
For measuring flat and corner welds
Scales and instructions for use printed on both sides
Design (single): aluminum
Thickness
mm
1
Measurement range corner welds
mm
2-15
Measurement range flat welds
mm
0-50
Overall length
mm
62.5
Order number
93101
Digital Welding-Seam Gauge No. 9c
High-precision design
For measuring flat and corner welds
With angles of 60º, 70º, 80º and 90º to measure flat V-groove welds
Design:
Steel, stainless, hardened and polished
On-/off-switch
Reading: millimeter/inch (+/- 0.01 mm)
Large LCD display as measurement indicator
Power supply: button cell 1.55 V (LR 1130 SW)
Measurement range
mm
0-200
inch
0-0.8
Net weight
kg
0.070
Order number
97101

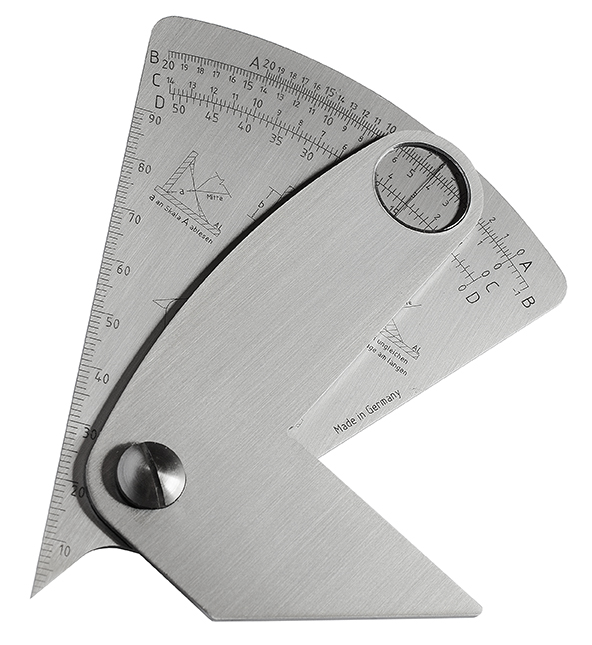

Weld Gauge No. 84
This gauge is a measuring tool designed for quick and easy verification of weld dimensions. Measurement errors caused by angular shrinkage are largely prevented by the gauge’s single-sided contact.
(
