Measuring Stands

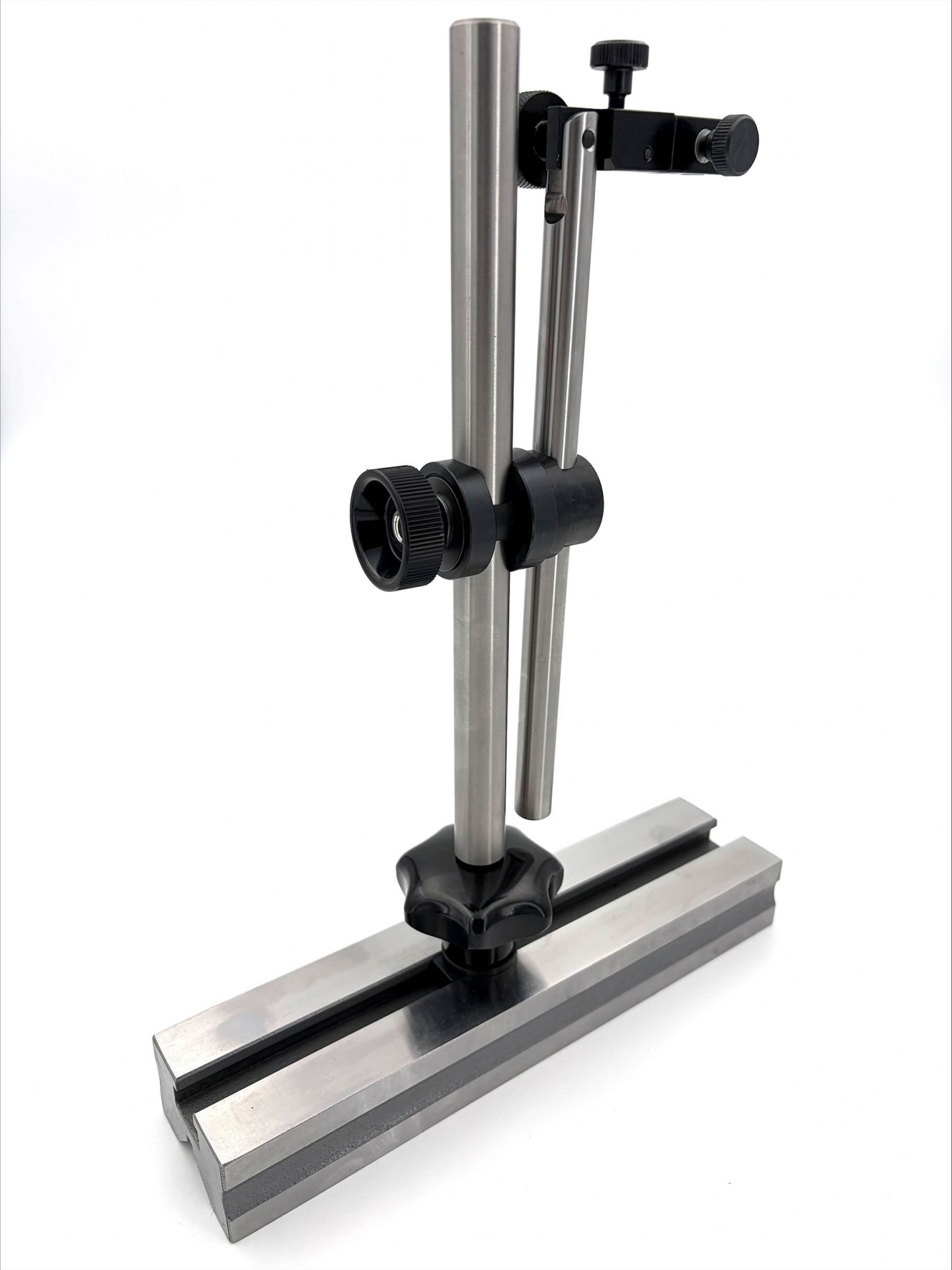

Universal measuring stand
no. 95

  • With fine adjustment
  • Finely polished V-block base allows set-up on shafts or cylindrical bodies
  • Holding rod manually adjustable and clampable on base with nut
  • Holding rod and swivel arm chrome-plated
Projection
mm
180
V-block base
(dimensions)
mm
(L x W x H)
250 x 60 x 35
Holding rod (height)
mm
300
Holding rod (Ø)
mm
16
Swivel arm (Ø)
mm
16
Weight
kg
3.800
Holding rod + swivel arm
Order no.:
952701
Measuring stand without dial indicator
Order no.:
951201
V-block base
Order no.:
951101

Universal magnetic measuring stand
no. 96

  • Magnetic base with on/off switch
  • V-shaped magnetic base allows set-up on all plane and cylindrical steel surfaces
  • Holding rod and swivel arm chrome-plated
  • Swivel arm with joint and fine adjustment for dial indicator
Size

1
2
Projection
mm
180
180
Total height
mm
285
500
Magnetic base
(dimensions)
mm
(LxxxWxxxH)
70xxx46xxx65
75xxx60xxx80
Mounting hole for dial indicator (Ø)
mm
8
8
Swivel arm (Ø)
mm
16
16
Holding rod (Ø)
mm
16
20
Pull force
kp
60
80
Mounting hole size

M10
M12
Weight measuring stand without dial indicator
kg
2.330
4.980
Weight magnetic base
kg
1.325
2.700
Measuring stand without dial indicator
Order no.:
961201
961202
Magnetic base
Order no.:
961101
961102
Wooden case for measuring stand
Order no.:
961301
961302

Spare parts for measuring stand
no. 96


Order no.
Size 1
Order no.
Size 2
Crosshead
96/2
96/2-2
Fine adjustment
96/5
96/5
Swivel arm with fine adjustment
96/6
96/6
Holding rod with swivel arm
96/7
96/7-2
Holding rod
96/11
96/11-2
Swivel arm
96/12
96/12
Clamping nut
96/13
96/19



Fine-adjustment knobs for measuring stands


Order no.: 96/5

Order no.: 130-01-03-00

Order no.: 130-02-03-00

Universal magnetic measuring stand
no. 130

  • With central locking mechanism
  • With fine adjustment
  • Clamping knob allows great mobility
  • Magnetic base with powerful pull force and rotary on/off switch
  • Multi-purpose mounting notch for
    - dial indicator,
    - dial comparator,
    - measuring probe with shaft (Ø 8 mm H7),
    - level dial gauge with dovetail rail
Size

1
2
Operating range
mm
285
200
Total height
mm
430
310
Magnetic base
(dimensions)
mm (LxxxWxxxH)
70xxx46xxx65
65xxx50xxx55
Mounting hole size

M10
M8
Pull force
kp
60
50
Total weight
kg
2.200
1.220
Magnetic base
Order no.:
1301101
1301102
Measuring stand without magnetic base
Order no.:
1301401
1301402
Measuring stand without dial indicator
Order no.:
1301201
1301202
Wooden case
Order no.:
1301301
1301302

Universal measuring stand
no. 131

  • Vacuum base allows set-up on granite measuring plates and other non-magnetic surfaces
Total height
mm
390
Vacuum base (Ø)
mm
100
Pull force
kp
23
Total weight
kg
1.500
Measuring stand
Order no.:
1311201
Wooden case
Order no.:
1311301
Vacuum base
Order no.:
1311101

Measuring stand
no. 133

  • With round magnetic base
  • With fine adjustment
  • Mounting notch for dial indicator and dovetail rail
Projection
mm
130
Total height
mm
170
Magnetic base (Ø)
mm
35 x 30
Mounting hole for dial indicator (Ø)
mm
8
Swivel arm (Ø)
mm
8
Holding rod (Ø)
mm
10
Weight
kg
0.400
Holding rod  + swivel arm
Order no.:
1330001
Magnetic base
Order no.:
1331101
Measuring stand without dial indicator
Order no.:
1331201

Universal magnetic measuring stand
no. 136

  • With flexible articulated steel arm
  • With fine adjustment
  • Magnetic base with on/off switch
Operating range
mm
200
Total height
mm
350
Magnetic base
(dimensions)
mm
( L x W x H)
70 x 46 x 65
Mounting hole for dial indicator (Ø)
mm
8
Weight
kg
1.850
Pull force
kp
60
Articulated steel arm
Order no.:
1360001
Magnetic base
Order no.:
1361101
Measuring stand without dial indicator
Order no.:
1361201

Magnetic measuring stand
no. 137

  • With fine adjustment
  • Magnetic base with on/off switch
Projection
mm
150
Total height
mm
230
Magnetic base
(dimensions)
mm
(L x W x H)
65 x 50 x 55
Mounting hole for dial indicator (Ø)
mm
8
Swivel arm (Ø)
mm
10
Holding rod (Ø)
mm
12
Mounting hole size

M8
Weight
kg
1.450
Pull force
kp
50
Holding rod + swivel arm
Order no.:
1370001
Magnetic base
Order no.:
1371101
Measuring stand without dial indicator
Order no.:
1371201

Magnetic measuring stand
no. 143/3

  • With central locking mechanism
  • With fine adjustment
  • Magnetic base with on/off switch
  • Multi-purpose mounting notch for
    - dial indicator,
    - dial comparator,
    - measuring probe with shaft (Ø 8 mm H7),
    - lever dial gauge with dovetail rail
Operating range
mm
300
Total height
mm
380
Magnetic base
(dimensions)
mm
(L x W x H)
73 x 50 x 55
Mounting hole size

M8
Weight
kg
1.700
Pull force
kp
60
Magnetic base
Order no.:
1431104
Measuring stand
Order no.:
1431203
Measuring stand without magnetic base
Order no.:
1431403
