Beveled-Edge Squares

High-precision beveled-edge square
- DIN 875/00
- Hardened special steel
- Lapped measuring edges
Leg length
Cross-section
Order no.
Order no.
mm
mm
Stainless steel
Burnished steel
50 x 40
14 x 4,5
858385
848385
75 x 50
16 x 4
858386
848386
100 x 75
20 x 5
858387
848387
150 x 100
28 x 6
858388
848388
200 x 130
30 x 7
858389
848389





High-precision try square
Accuracy DIN 875/00
- Hardened and stainless
- With strong and weak legs
- With 2 hairline edges, high edges & flat sides
- Precisely and finely ground
- Lapped test surfaces
Leg length
Strong leg
Weak leg
Weigth
Order no.
mm
mm
mm
kg
Stainless steel
50 x 40
14 x 10
16 x 2
0,045
137105
75 x 50
14 x 10
16 x 2
0,055
 137107
100 x 75
18 x 12
20 x 3
0,125
 137110
150 x 100
20 x 13
25 x 3
0,320
 137115
200 x 130
28 x 16
30 x 4
0,650
 137120



5-Piece Precision Measuring Tool Kit

The kit includes:
- 1 beveled-edge square DIN 875/00
- 75 x 50 mm
- 1 adjustable beveled-edge square
- 40 x 28 mm
- 1 adjustable beveled-edge square
- 25 x 20 mm
- 1 straightedge
- 100 mm
- 1 gauge-block scriber point
- 60 x 8 x 8 mm
Packed in wooden case
Order no.: 136050



Adjustable beveled-edge squares

Precision measuring tool used to test surfaces for flatness, straightness and perpendicularity.

A square made of steel with a beveled -edge, which is used for precise measurements in mechanical engineering, toolmaking and other fields.

Unlike fixed beveled-edge squares, an adjustable beveled-edge square permits the measuring length to be adjusted, thus enabling more flexible use on different workpieces.





Adjustable beveled-edge square No. 103
- Straightedge made of hardened steel
- Lapped measuring edges and surfaces
- Adjustable and lockable in any position
- Hardened steel body



Dimensions body
LxxxBxxxH mm
40xxx23xxx10
Length straightedge
mm
60
Cross-section straghtedge
mm
4 x 4
Order no.

1031101
Adjustable high-precision beveled-edge square No. 104
- Straightedge made of polished carbide
- Lapped measuring edges and surfaces
- Adjustable and lockable in any position
- The rectangular position of the straightedge is adjustable by ±15° with a set screw
- Body made of stainless steel
Dimensions body
LxxxBxxxH mm
40xxx20xxx10
Length straightedge
mm
60
Cross-section straightedge
mm
3 x 3
Order no.

1041101
Spare straightedge
Order no.
1041201
Adjustable beveled-edge square No. 105
- Straightedge made of hardened steel
- Lapped measuring edges and surfaces
- Adjustable and lockable in any position
- The rectangular position of the straightedge is adjustable by ±5° with a spindle
- Body made of matt chrome-plated steel



Design

1
2
Length handle
mm
60
60
Length straightedge
mm
100
100
Net weight
kg
0.250
0.250
Adjustable beveled-edge square
Ordernno.
1051101
1052101
Spare straightedge
Ordernno.
1051201
1052201



Design 1: straightedge: standard
Design 2: straightedge: offset

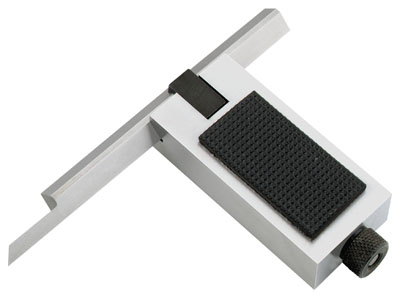

Adjustable beveled-edge square No. 106 (discontinued item)
- Straightedge made of hardened steel
- Lapped measuring edges and surfaces
- Adjustable and lockable in any position
- Body made of matt chrome-plated steel



Design

1
2
Length handle
mm
60
60
Length straightedge
mm
100
100
Net weight
kg
0.200
0.200
Adjustable beveled-edge square
Ordernno.
1061101
1062101
Spare straightedge
Ordernno.
1061201
1062201



Design 1: straightedge: standard
Design 2: straightedge: offset
